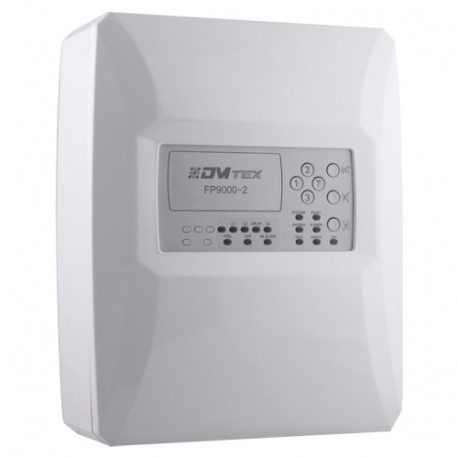

DMT-FP9000L-2-IT Agrandir l'image

DMT-FP9000L-2-IT

DMT-FP9000L-2-IT

Neuf

  • 2 Zone Conventional Fire Alarm Panel
  • 2 Siren output
  • 2 alarm and fault outputs and 2 configurable relay outputs
  • Repeater output
  • Up to 30 detectors per zone
  • End-of-line resistance auto detection

  • DMTECH
  • Centrale incendie conventionnelle 2 zones
  • Certifié EN54-2 et EN54-4
  • 2 sorties indépendantes de sirène
  • 2 sorties auxiliaires d'alarme et erreur
  • 2 sorties relais configurables
  • Sortie individuelle pour répéteurs
  • Capacité pour 2 batteries de 12V
  • 4 niveaux d'accès (3 d'utilisateur et 1 d'usine)
Alimentation primaireSource de commutation 187-252V AC 50-60 Hz 65W max.
Alimentation Secondaire2 batteries 12VDC (jusqu'à 5 Ah). Garantit une durée minimale de 120 heures.
Nombre de Zones4 zones, jusqu'à 30 detecteurs par zone.
Sorties sirène2 Sorties sirène 24VDC. Sorties de collecteur ouvert indépendant et contrôlées
Sorties relais4 Sorties de relais: 1 Sortie d'alarme, 1 sortie de défaut et 2 sorties relais configurables. Toutes supportent 30VDC 3Amax.
Résistance de fin de ligneZones entièrement surveillées par résistance de fin de ligne (4.7K)
Tension de Sortie Auxiliaire24VDC. Protégé par un fusible électronique réarmable 1.85A
Indice de ProtectionIP30
Température-5ºC~+45ºC
Matériel et couleurABS, Couleur: Blanc
Dimensions310 x 240 x 80 mm
Poids1,3Kg
Câble recommandéCâble de feu avec une section minimale de 1.0mm (18AWG).
