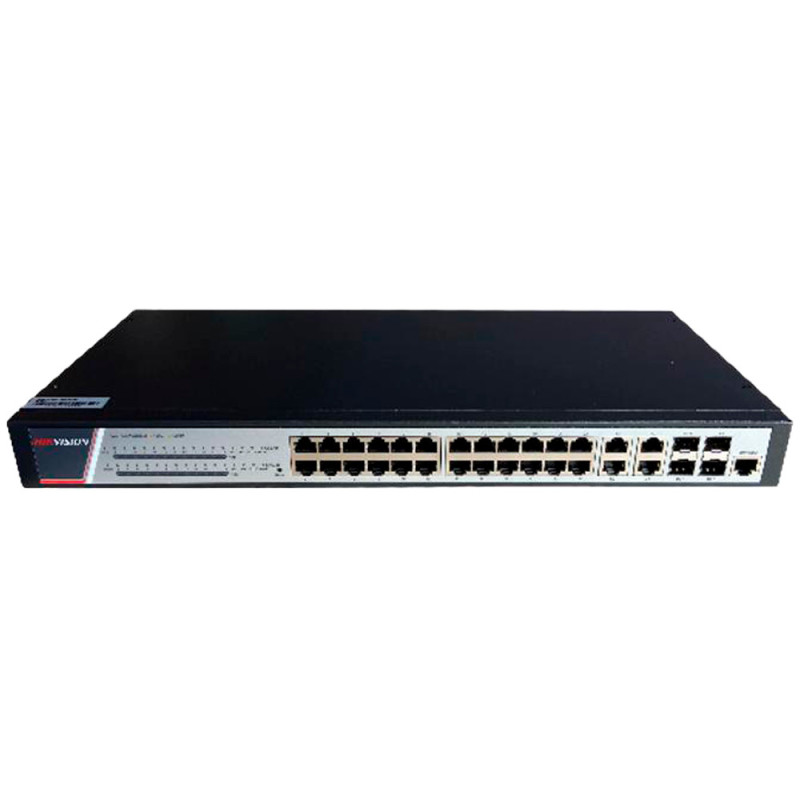

- Hikvision
- Switch Gestionable Capa 3
- 24 puertos PoE RJ45 10/100/1000Mbps (4 Combo RJ45/SFP)
- 24 Puertos PoE+ hasta 30W
- Hasta 370W de potencia PoE Total
- Montaje en rack
- VLAN/Port Isolation/STP/RSTP/ACL/QoS/RIP/PBR
- LACP/IGMP snooping/RIP/OSPFv2/OSPFv3
| Interfaces | 24 Puertos PoE+ RJ45 + 4 RJ45/SFP (Combo) + 1 Puerto Consola |
| Características PoE | Hasta 30W en puertos 1-24 802.3af/at Hasta 370W de potencia PoE Total Pinout puertos 1-24 1,2- / 3,6+ |
| Velocidad de puertos | 24 Puertos RJ45 Gigabit + 4 Puertos RJ45 10/100/1000Mbps + 4 Puertos SFP+ 1GE/10GE |
| Capacidad Switching | 336Gbps |
| Tasa de Reenvío | 51Mbps |
| Tabla MAC | 8K |
| Tabla ARP | 2K??????? |
| Tabla Routing | IPv4: 128K IPv6: 64K |
| VLAN | IEEE 802.1Q (VLAN), 4096 VLAN IDs GVRP QinQ VLAN basadas en MAC/ protocolo /IP subnet / politicas / puertos Private VLAN Soporta 1:1 and N:1 VLAN mapping functions |
| Control de redundancia | STP/RSTP/MSTP EAPS/MEAPS MRD-Ring ERPS VRRP BFD for OSPF BFD for OSPF |
| Protocolo Gestión y Mantenimiento | Console, Telnet, SSHweb, http,https FTP, TFTP, Xmodem, SFTP SNMP V1/V2c/V3 RMON NTP |
| DHCP | Servidor / Cliente / Snooping / Relay IPv4 / DHCP Snooping IPv4 |
| Routing | Rutas Estaticas, RIP, OSPF IPv4/IPv6 ECMP VRRP, VRRP v3 IPv4/IPv6 Policy-based routing IPv4/IPv6 Routing policy IPv4/IPv6 dual stack IPv6 static routing, RIPng, OSPFv3 |
| ACL | IP-based ACL/MAC-based ACL based on MAC Address, IP Address, Ethertype, Protocol Type, VLAN ID, DSCP, 802.1p Priority Soporta hasta 256 ACLs |
| QoS | Diff-Serv QoS 802.1p/DSCP priority mapping Queue scheduling including SP, WRR, WFQ, SP+WRR, SP+WFQ Priority marking and remarking Traffic shaping Congestion avoidance, Tail-Drop and WRED 802.1p, TOS, DSCP, and EXP priority mapping Port/Flow- based Rate Limiting |
| Multicast | IGMP v1/v2/v3 Snooping IGMP V1/V2/V3 MLD Snooping v1/v2 MLD v1/v2 |
| Mirroring | Local and remote port mirroring N:4 port mirroring Flow mirroring MAC mirroring |
| Agregación de enlaces | Soporta 802.3ad LACP/static link aggregation |
| Seguridad | AAA,TACACS+ Radius Authentication 802.1X authentication, MAC authentication, MAC bypass authentication Prevención de DOS, ARP attack function, ICMP anti attack binding of IP, MAC, port and VLAN Support MAC authentication MAC address filtering Control de tormentas Broadcast/Multicast/Unknown-unicast |
| Alimentación | AC：100V～240V AC, 50/60Hz |
| Temperatura de funcionamiento | -10º C ~ 50º C |
| Instalación | Rack |
| Dimensiones | 210 (Fo) x 44 (Al) x 440 (An) mm |
| Peso | 3,1 Kg |
