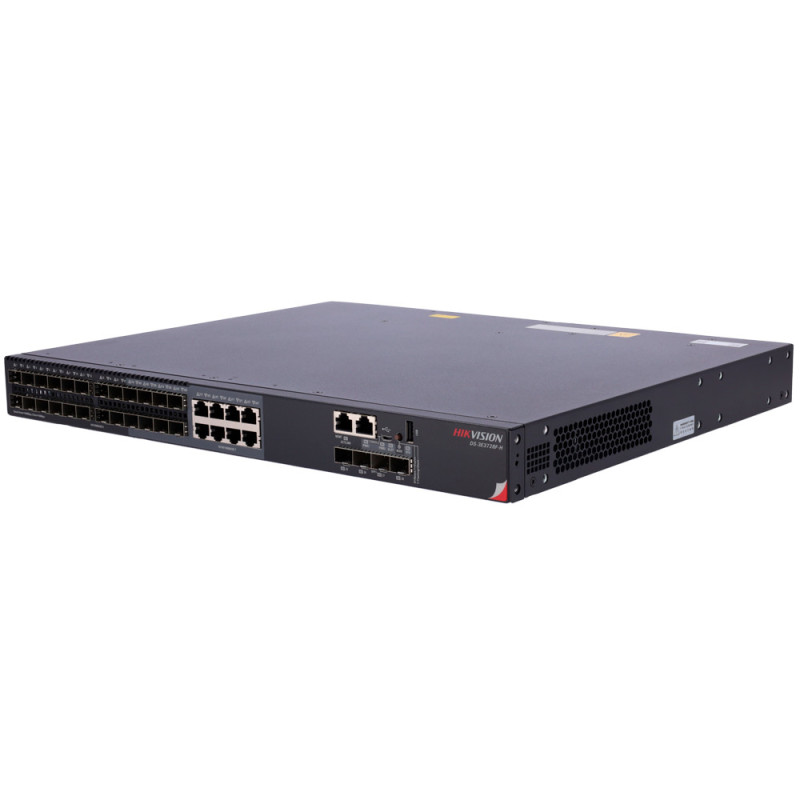

Nouveau DS-3E3728F-H Agrandir l'image

DS-3E3728F-H

DS-3E3728F-H

Neuf

  • Hikvision Switch Gestionable L3
  • 24 puertos SFP + 8 RJ45 Combo + 4 puertos SFP+
  • 24 Puertos Gigabit + 8 Gigabit + 4 Puertos 10G
  • VLAN/Port Isolation/STP/RSTP/MSTP/ACL/QoS/BGP
  • LACP/DHCP Snoop/IGMP Snoop/RIP/OSPFv1-v3/BGP4
  • Enrackable
  • Hikvision
  • Switch Gestionable Capa 3
  • 24 puertos SFP 10/100/1000Mbps (8 Combo RJ45)+ 4 puertos SFP+ 10 Gigabit
  • Montaje en rack
  • 2 Slot para fuente de alimentación redundante
  • Slot de Expansión
  • VLAN/Port Isolation/STP/RSTP/ACL/QoS/RIP/BGP
  • LACP/IGMP snooping/RIP/OSPFv2/OSPFv3/BGP4/BGP4+
Interfaces24 Puertos SFP (8 Combo) + 8 RJ45 (Combo) + 4 Puertos SFP+ + 1 Puerto MGMT + 1 Puerto Consola + 1 Puerto USB
Velocidad de puertos24 Puertos SFP 100/1000Mbps + 8 Puertos RJ45 10/100/1000Mbps + 4 Puertos SFP+ 1GE/10GE
Capacidad Switching598Gbps
Tasa de Reenvío95,23Mbps
Tabla MAC32K
Tabla ARP2K
Tabla RoutingIPv4: 32K
IPv6: 16K
VLANPort-based VLAN
MAC-based VLAN
Protocol-based VLAN
VXLAN Layer 2 switching
VXLAN routing switching
VXLAN gateway
QinQ
Control de redundanciaSTP/RSTP/MSTP/LACP
Protocolo GestiónCLI / Telnet/ SNMP / RMON / NTP / Openflow 1.3
DHCPServidor / Cliente / Snooping / Relay v4 y v6 / DHCP Snooping v4 y v6 /
RoutingIPv4/IPv6 static routing / RIP / RIPng / OSPFv2 / OSPFv3 / BGP4 y BGP4+
ACLACL Estándar / Basadas en MAC / Basadas en tiempo / IPv6 ACL / Basadas en VLAN / Bidireccionales
QoS802.1p DSCP / SP / WRR / WFQ / SP+WRR / CAR / Port Rate limit
MulticastIGMP Snooping v2, v3 / PIM-SM / PIM-SSM / MLD Snooping / Multicast VLAN
MirroringBasado en puerto, RSPAN, basada en tráfico
Control de tormentasIEEE 802.3x flow control (full duplex)
Storm control based on port rate percentage
PPS/BPS-based storm control
SeguridadAAA / RADIUS / 802.1x / IP Source Guard / Inspección dinámica ARP / Protección de Puerto/ VLAN de Invitados
Alta Disponibilidad y Stacking VirtualHasta 9 unidades máximo
AlimentaciónAC：100V～240V AC，50/60Hz DC： -48V～-60V DC (Fuente de alimentación no incluida)
Temperatura de funcionamiento0º C ~ 45º C
Consumo eléctricoSingle AC input: 112 W
Dual AC inputs: 116 W
Single DC input: 113 W
Dual DC inputs: 122 W
InstalaciónRack
Dimensiones360 (Fo) x 43.6 (Al) x 440 (An) mm
Peso6,6 Kg
